High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating

Place of Origin : China

Brand Name : JINPAT

Model Number : LPKS025-085-0205-08S

MOQ : 10pcs

Price : Negotiable

Circuits : 2 circuits

Current Rating : 5A per circuit

Voltage Rating : 220VDC/AC

Contact Material : Precious metal

Inner Diameter : Φ25mm

Working Speed : 0~300rpm

Dielectric Strength : ≥300VDC@50Hz(Current), ≥100VDC@50Hz(signal)

Insulation Resistance : 100MΩ@300VDC(Current), 100MΩ@100VDC(signal)

Housing Material : FR-4

Wire Length : Stator Wire: 300mm, Rotor Wire: 300mm

Operating Temperature : -20°C~+60°C

Installation Method : Fixed with M2 screws

Rotating Speed : High

Thickness : 6mm

Signal Transmission : 360° rotation

Certification : ISO/CE/RoHS/UL

Contact Now

Product Description

Bargain Price Only in Alibaba

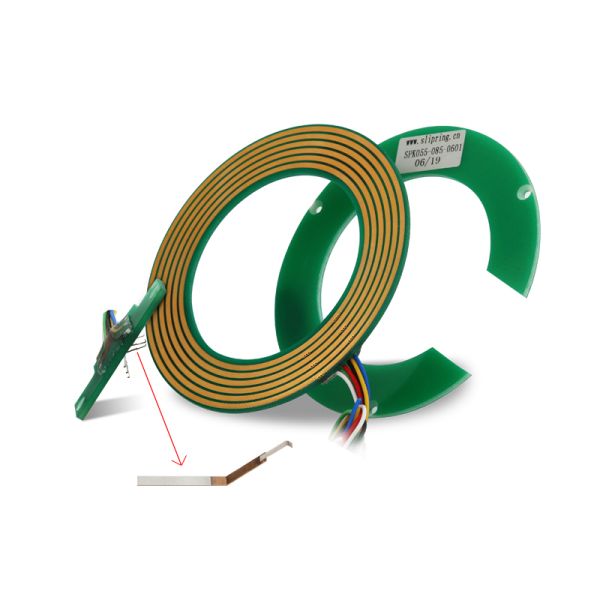

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

  • High Rotating Speed
  • Unfailing contact, light figure
  • Extremely low physical noise
  • Transmitting power and signal in 360° rotation
  • No interference or connection drop

Advantages

  • Ready-made photoelectric encoder
  • Optional solid and hollow shafts
  • Rapid delivery
  • Custom solution
Specification

Electronic & Electric

Mechanical

Circuits

2circuits * 5A

8 circuits* signal

Working Speed

0~300rpm

Inner Diameter

Φ25mm

Working Voltage

220VDC/AC

Contact

Nobel Metal

Dielectric Strength

≥300VDC@50Hz(Current)

≥100VDC@50Hz(signal)

Housing

FR-4

Insulation

100MΩ@300VDC(Current)

100MΩ@100VDC(signal)

Wire Length

Stator Wire:300mm

Rotor Wire: 300mm

Environment

Remarks

Temperature

-20°C~+60°C

Installation Method

Both stator and rotor are fixed on the customer's flange with M2 screws
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating

Main Application

1. Packaging / wrapping machinery
2. Semiconductor handling systems
3. Industrial machinery
4. Exhibit Display machinery
5. Medical equipment
6. Rotary index tables
7. Process control equipment
